Tecrony Co., Ltd. > Products > AMD CPU industrial board AMD CPU industrial board

- 기존의 ATOM Processor와 비교하여 탁월한 GPU 성능을 발휘합니다.

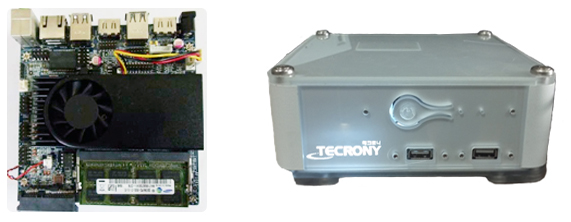

Product Images
Detail Specification
Specification
CPU AMD eOntario dual core or single core processor T56N，dual core ,18W, M1 FCH (1.6G Dual)
Chipset AMD Husdon
Memory 1 * SO DIMM DDR3 800/1066MHz of memory up to 4GB
Graphics - Integrated AMD HD 6250 Graphics with UVD3.0 Decode, support DirectX11, 1080i, 1080P and H.264.
VC-1, MPEG-G etc high definition player.
Audio Realtek ALC883, support .1/7.1 HD sound channel
LAN 1* Realtek ,10/100/, support PXE
Storage Interface 1* Notebook SATA 3Gb/s with power
Expansion Slots 1*MINI PCI-E slot
USB 6*USB 2.0(4 pcs on the back panel,2 pcs via the USB brackets connected to the internal USB headers)
Internal
I/O Connectors
  • - 1 x F_PA NEL header
  • - 1 x CPU_ FAN header
  • - 1 x SYS_FA N connector
  • - 1 x Front Audio header
  • - 2 x USB 2.0 headers
  • - 2 x COM headers
  • - 2 x headers
  • - 1 x PWR_SEL header
  • - 1 x MINI_PCIE connector
  • - 1 x SATA connector
  • - 1 x MINI_PCI E connector
  • - 1 x 24bit LVDS connector
  • - 1 x LVDS_INVERT header
  • - 1 x SPEA KER header
  • - 1 x CLR_CMOS header
  • - 2 x PS-SEL ( SATA and PCIE header)
Back Panel
Connectors		 1 x D C power supply port
2 x HDMI ports
1 x R J45 port
1 x AUDIO connector（2x Jacks
4 x U SB connector
BIOS AMI Authorized 8Mbit BIOS, support RPL/PXE non-disk system
Size 120mm(L) X 120mm(W)
