Android Solution > Android TV (AT156 series)
Android Solution
Android TV
(AT156 series)
- 안드로이드 보드와 TV보드가 통합된 보드로써, 지상파/케이블의 디지털 TV를 지원합니다.
- 유럽향(DVB-T), 국내 및 미주향(ATSC), 일본 및 중남미향 (ISDB)지원 가능합니다.

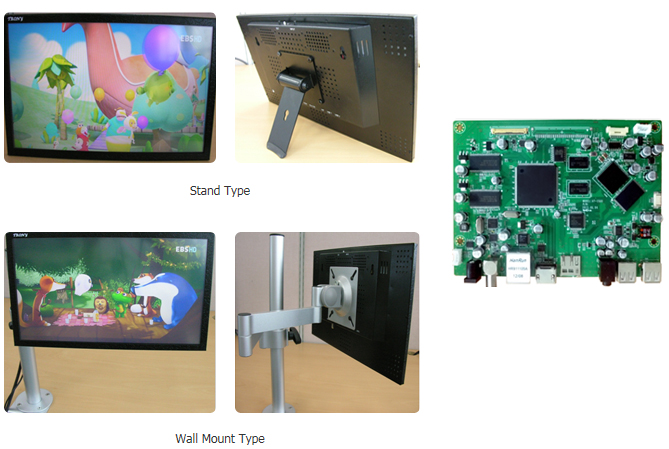

Product Images
- 유럽향(DVB-T), 국내 및 미주향(ATSC), 일본 및 중남미향 (ISDB)지원 가능합니다.
| Description | MODEL | ||||
|---|---|---|---|---|---|
| AT-1560 | AT-1561 | AT-1562 | |||
| Display | LED Panel | Panel Size | 15.6 " | 15.6 " | 15.6 " |
| LED Panel Native Resolution | 1366x768(WXGA) | 1600x900(WXGA+) | 1366x768(WXGA) | ||
| Lamp Type | LED | LED | LED | ||
| Brightness (Max.) | 220 cd/m2 | 250 cd/m2 | 220 cd/m2 | ||
| Contrast Ratio (Cr) | 2,000 : 1 | 5,000 : 1 | 2,000 : 1 | ||
| Responsee Time (Ttotal(Tr / Tf)) | 16ms | 8ms | 16ms | ||
| Aspect Ratio | 16 : 9 | 16 : 9 | 16 : 9 | ||
| Viewing angle (H/V) | 90° / 60° | 120° / 100° | 90° / 60° | ||
| H/W | Processor | CPU | 1.2G ARM cortex A8 core | 1.2G ARM cortex A8 core | 1.2G ARM cortex A8 core |
| SCALER | MSD2278 (MSTAR) | MSD2278 (MSTAR) | - | ||
| OS | Version | Android 2.3 and future version(ICS) | Android 2.3 and future version(ICS) | Android 2.3 and future version(ICS) | |
| Memory | SDRAM/DDR | DDR512MB | DDR512MB | DDR512MB | |
| NAND (Optional : 2GB~16GB) | 8GB | 8GB | 8GB | ||
| Network | Wi-Fi | WLAN IEEE 802.11 b/g/n | WLAN IEEE 802.11 b/g/n | WLAN IEEE 802.11 b/g/n | |
| Wired Internet | Ethernet RJ45 | Ethernet RJ45 | Ethernet RJ45 | ||
| Cam | 2M Pixel (Optional : ~5M) | Optional | Optional | Optional | |
| Terminals | RF Input (Ant. Jack) | 1 | 1 | - | |
| USB Input (USB2.0) | 2 | 2 | 2 | ||
| SD Slot (Micro SD Jack) | 1 | 1 | 1 | ||
| Video Input (RCA Jack) | 1 | 1 | 1 | ||
| Headphone Output (Stereo Jack) | 1 | 1 | 1 | ||
| HDMI Output (HDMI Jack) | 1 | 1 | 1 | ||
| Ethernet Input (RJ-45 Jack) | 1 | 1 | 1 | ||
| DC Input (DC Jack) | 1 | 1 | 1 | ||
| Sound | Speaker Output (RMS) | 5W x 2 | 5W x 2 | 5W x 2 | |
| Stereo Sound System | Internal 2 Way System | Internal 2 Way System | Internal 2 Way System | ||
| Special Features | Digital & Analog TV (Air, Cable) | Yes | Yes | - | |
| Touch Screen | Yes | Yes | Optional | ||
| Remote Controller (Full Function) | Yes | Yes | Optional | ||
| Landscape & Portrait display | Yes | Yes | Yes | ||
| Picture Mode Selection | Yes | Yes | - | ||
| Energy Saving (Back Light Control) | Yes | Yes | - | ||
| Aspect Ratio Converter | Normal, Full Scan, Over Scan, Under Scan | Normal, Full Scan, Over Scan, Under Scan | - | ||
| EPG (Electronic Program Guide) | Yes | Yes | - | ||
| Still Image | Yes | Yes | - | ||
| Bluetooth | Optional | Optional | Optional | ||
| Stand & Mount | Stand Type (Basic) | TBD | TBD | TBD | |
| VESA Mount Type | 75mm x 75 mm | 75mm x 75 mm | 75mm x 75 mm | ||
| Insert Type | TBD | TBD | TBD | ||
| Power | Input Voltage | DC 12V / 3A | DC 12V / 3A | DC 12V / 3A | |
| Power Consumption | TBD | TBD | TBD | ||
| Dimensions (Without Stand) | Outline Dimensions (W x H x D) | TBD | TBD | TBD | |
| Net Weight | TBD | TBD | TBD | ||
