Multimedia Player
HD Player
- 멀티미디어 플레이어 모듈은 TV / 모니터에 내장되어, 사용자의 USB 또는 SD 메모리에 저장된 동영상/사진/음악등의 재생을 가능토록 고안된 모듈입니다.

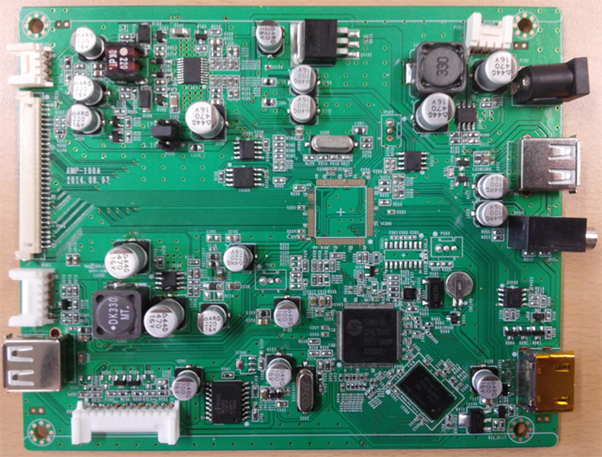

Product Images
Detail Specification
| CHIPSET | TSUMU88CDT9 (MSTAR) + SPHE1506C (SUNPLUS) | ||
|---|---|---|---|
| MARKET AREA | World Wide | ||
| OSD LANGUAGE | English | ||
| PANEL | Panel Type | LCD, LED 60Hz | |
| Interface | Single/Dual LVDS Interface | ||
| Max Resolution | 1920 * 1200 | ||
| VIDEO & AUDIO INPUT | HDMI | 480P ~ 1080P | |
| USB | USB2.0 (Movie / Music / Photo) | ||
| AUDIO OUTPUT | Frequency Response | 100Hz ~ 15KHz@±3dB (1KHz 0dB reference signal) | |
| Max Output(Speaker)(Head Phone) | 2x8W (8Ω) THD+N <10%@1kHz20mW (32ohm) / 40mW (16ohm) | ||
| POWER | Requirement | 12V | |
| Management | Standby Power Consumption < 0.5W | ||
| KEY FUNCTION | 6 KEY (MENU,SOURCE/▼,ARC/▲,VOL◀,VOL▶,POWER) | ||
| TERMINALS | INPUT | DC JACK | 1EA |
| HDMI JACK | 1EA | ||
| USB JACK(External) | 1EA | ||
| USB JACK(Internal) | 1EA | ||
| OUTPUT | HEAD PHONE JACK | 1EA | |
| SPECIAL FEATURES | Picture Mode Selection | 4 Mode | |
| Back Light Control | 100 Steps | ||
| Aspect Ratio Converter | 16:9 , 4:3 | ||
| Timer & Support Scheduler | |||
| Auto play System | |||
| USB Copy System | |||
